Feature
Stand-up and sit-down configurations
1.5- to 2-ton page range
Maximum lifting height up to 13,000 mm
80V lithium-ion LiFePO4 battery
ZAPI or eMotion controller
Cold-store and cab options available
DeltaLift 1.5-2 Ton Lithium-Ion Battery Reach Truck
Choose between stand-up and sit-down reach-truck configurations for high-level pallet handling in suitable warehouse and storage environments.
Lithium-Ion 13,000 mm
The supplied catalogue shows a 1.5-ton stand-up reach truck and sit-down models rated at 1.6 and 2 tonnes. Its specification table also lists a 2.5-ton CQD25 model, which must be confirmed for inclusion on this page before publication. All listed models use an 80V lithium-ion LiFePO4 battery system and are available with ZAPI or eMotion control technology. The catalogue lists a maximum lifting height of 13,000 mm across the range. Model selection, mast configuration, battery capacity, charger specification, aisle suitability and residual capacity at height must be confirmed during quotation. A cold-store configuration and cab are listed as available options, subject to the final application and approved specification.
1,500-2,000 kg
PAGE RANGE
500 mm
LOAD CENTRE
Up to 13,000 mm
LIFT HEIGHT
Availability and configuration are confirmed during quotation. Model selection should be based on the actual load, load centre, aisle or yard space, lifting height and duty cycle.
Product Overview

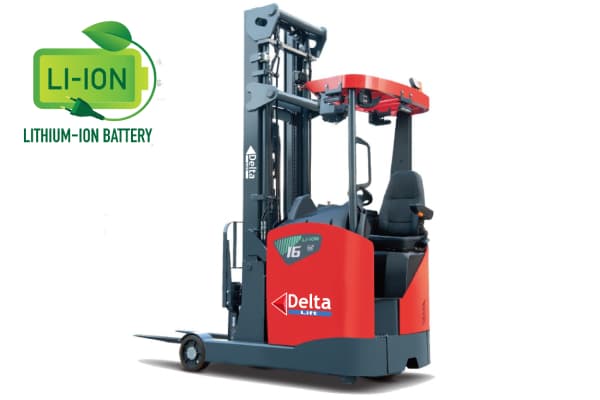

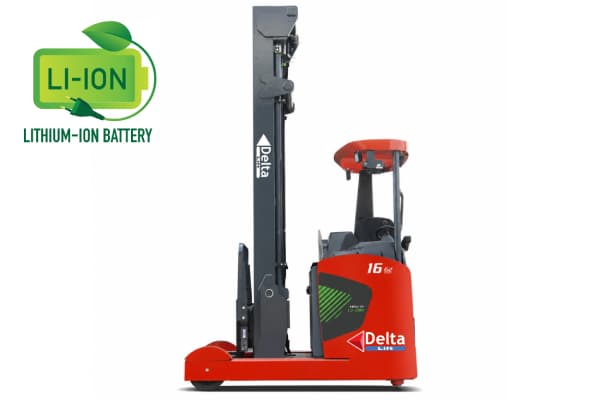

The DeltaLift 1.5-2 Ton Lithium-Ion Battery Reach Truck range is intended for businesses that need compact electric equipment for pallet movement and elevated storage in suitable warehouse environments. The range combines a 1.5-ton stand-up model with sit-down options rated at 1.6 and 2 tonnes, giving buyers a choice of operating position and capacity. The updated catalogue table also includes a 2.5-ton CQD25 model; its product configuration and page placement should be confirmed before publication.
A reach truck is designed to work in narrower aisles than many counterbalance forklifts while placing and retrieving palletised loads at height. The catalogue lists a maximum lifting height of 13,000 mm for the models shown. Actual capacity at the required height depends on the mast, load centre, attachment and final truck configuration, so the application must be checked against the manufacturer-approved capacity data before selection.

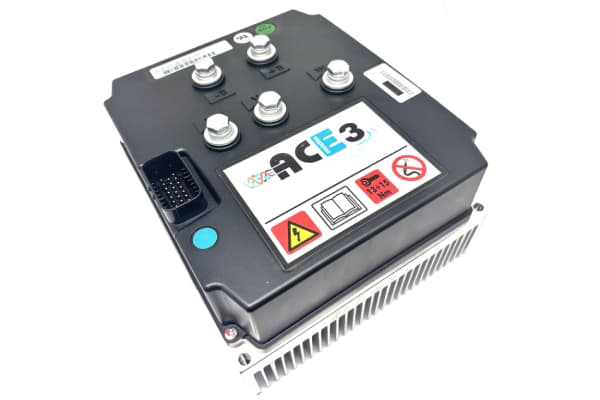

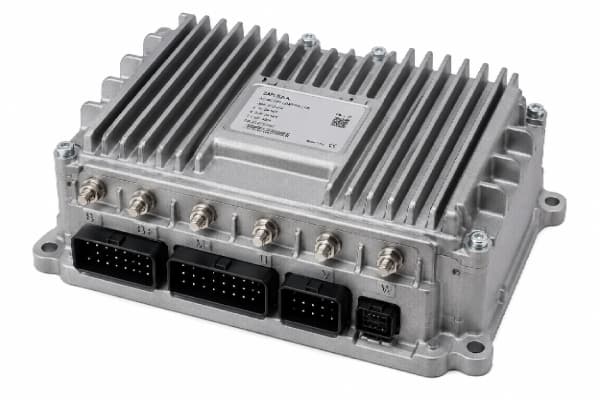

All listed models use an 80V lithium-ion LiFePO4 battery system. Controller options are identified as ZAPI or eMotion, and the catalogue notes that cold-store and cab configurations are available. Delta Heavy Equipment can assess the load, aisle width, lift height, rack layout, operating temperature and duty cycle before preparing a quotation.
Why it matters
Provides different operator-position options for the working environment and task profile.
Covers the primary capacities named in the catalogue title, with a 2.5-ton model also listed for confirmation.
Supports high-level pallet placement and retrieval where the rack and mast configuration allow.
Provides a defined battery platform across the listed models.
Offers recognised controller options as specified in the catalogue.
Allows low-temperature and enclosed-operator requirements to be considered during specification.
Practical outcome
A choice between compact stand-up operation and seated operation, subject to the selected model.
A closer match between truck capacity and the loads handled, once the final model range is approved.
Access to elevated storage positions, subject to residual-capacity verification.
A consistent electric power system for technical and charging assessment.
A configurable control platform matched to the selected truck.
A route to configuring the truck for approved cold-store applications.
The DeltaLift lithium-ion reach truck range can be considered for tasks such as:
- Placing and retrieving palletised loads in suitable warehouse racking.
- Moving pallets between receiving, staging, storage and dispatch areas.
- High-level storage applications where the selected mast and capacity chart support the required lift height.
- Narrower-aisle operations where a reach truck is appropriate for the site layout.
- Cold-store applications when the approved cold-store configuration has been selected.
- Operations that prefer lithium-ion electric equipment and have a suitable charging setup.
Suitability note
Reach-truck selection must consider aisle width, rack clearances, floor condition, load dimensions, load centre, lift height, residual capacity, mast type, battery and charger requirements, operator position, ambient temperature and daily duty cycle. The rated capacity at 500 mm load centre is not automatically available at every lift height.
Model
CQD15
CQD16
CQD20
CQD25
Configuration shown
Stand-up reach truck
Sit-down reach truck
Sit-down reach truck
Configuration to be confirmed
Rated capacity
1,500 kg
1,600 kg
2,000 kg
2,500 kg
Load centre
500 mm
500 mm
500 mm
500 mm
Maximum lift height
13,000 mm
13,000 mm
13,000 mm
13,000 mm
Battery
80V LiFePO4
80V LiFePO4
80V LiFePO4
80V LiFePO4
Specification / Unit
Load capacity / kg
Load centre / mm
Maximum lifting height / mm
Minimum outside turning radius / mm
Battery voltage / V
Controller
Battery chemistry
Options
CQD15
1500
500
13000
1615
80
ZAPI or eMotion
Lithium-ion LiFePO4
Cold store and cab available
CQD16
1600
500
13000
1689
80
ZAPI or eMotion
Lithium-ion LiFePO4
Cold store and cab available
CQD20
2000
500
13000
1751
80
ZAPI or eMotion
Lithium-ion LiFePO4
Cold store and cab available
CQD25
2500
500
13000
1775
80
ZAPI or eMotion
Lithium-ion LiFePO4
Cold store and cab available
Configuration
Each quotation should identify the selected model and agreed configuration. The final scope should state the operating position, rated capacity, mast and lift height, residual capacity for the intended load, battery voltage and capacity, charger type and electrical-input requirements, fork dimensions, controller, tyres, safety equipment, cold-store specification, cab and any optional accessories included in the price.
Delta Heavy Equipment can assist with site and application assessment, model selection and quotation. Delivery, commissioning, operator familiarisation, maintenance, repairs, parts and battery support should be stated clearly in the quotation where required rather than assumed to be included.
Safety and Operating Suitability
Only trained and authorised operators should use the reach truck. The truck must be operated within the limits shown on its data plate and capacity chart and in accordance with the approved operator manual and site procedures. Rated capacity can reduce as lift height, load centre or attachment requirements change.
Racking, aisle width, floor condition, gradients, overhead clearances and pedestrian routes must be assessed before use. High-level handling requires stable, correctly positioned loads and clear visibility. Use only the approved battery and compatible charger for the selected truck. Charging arrangements and cold-store operation must follow the manufacturer-approved instructions and the site’s safety requirements.
Find the Right DeltaLift Reach Truck for Your Warehouse
Compare the stand-up and sit-down options and request a quotation based on your load, lift height, aisle width, rack layout, duty cycle and operating environment.
