Feature
Three rated-capacity options
600 mm rated load centre
Maximum listed lift height of 6,500 mm
Minimum outside turning radius of 4,500 mm
Counterbalance diesel platform
Application-based quotation
DeltaLift 14-18 Ton Diesel Forklift
Reliable diesel-powered material handling across multiple load-capacity options.
Diesel 600 mm
Choose the model that matches your load, available operating space and application. The range includes compact units through to heavier-capacity options depending on site needs.
14,000 - 18,000 kg
LOAD CAPACITY
600 mm
LOAD CENTRE
6,500 mm
LIFT HEIGHT
Availability and configuration are confirmed during quotation. Model selection should be based on the actual load, load centre, aisle or yard space, lifting height and duty cycle.
Product Overview
The DeltaLift 14-18 Ton Diesel Forklift range is intended for heavy-capacity material handling where standard industrial forklifts do not provide sufficient rated capacity. The three listed models allow businesses to select a 14-, 16- or 18-ton starting point while retaining the familiar counterbalance forklift format.

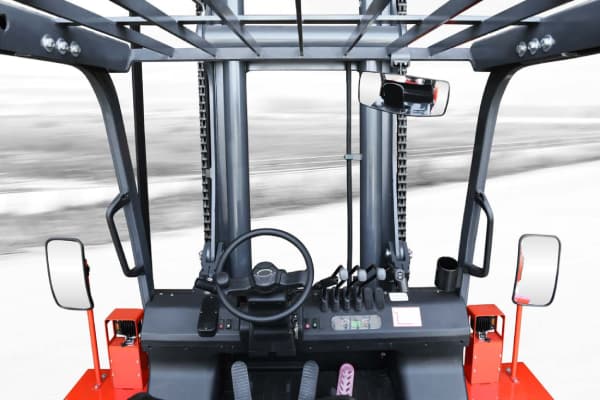

These forklifts can be considered for substantial palletised goods, machinery components, steel, timber, building materials and other heavy loads on suitable load-bearing surfaces. The catalogue imagery shows a heavy-duty mast and operator station designed around a large-capacity machine, but the final mast, forks, tyres, attachments and operator-protection equipment must be confirmed for each application.
Because high-capacity loads can vary significantly in size, centre of gravity and handling method, model selection should never be based on load weight alone. Delta Heavy Equipment can assess the complete load and site requirement before preparing a quotation.
Why it matters
Provides 14,000 kg, 16,000 kg and 18,000 kg models.
Uses a clearly stated reference load centre across the range.
Provides mast options for elevated handling.
Provides a common catalogue reference for manoeuvring space.
Suited to heavy lifting where diesel operation is permitted.
The final machine is configured around the load and site.
Practical outcome
Allows the starting capacity to be matched more closely to the heaviest verified load.
Supports accurate comparison, provided the real load centre is measured and residual capacity is checked.
Can support stacking, loading and process requirements at height, subject to configuration and capacity checks.
Helps with early site planning, while allowing additional clearance for forks, attachments and the load.
Supports demanding yard and industrial duties on appropriate surfaces and within approved site controls.
Reduces the risk of selecting an unsuitable mast, fork, tyre or attachment combination.
Configuration
Each quotation should identify the selected model and complete scope of supply. This should include the engine and transmission specification, mast and lift height, forks, carriage, tyres, hydraulic controls, attachment requirements, operator-protection equipment, lighting, alarms, cameras or visibility aids and any optional accessories included in the price.
Delta Heavy Equipment can assist with model selection, site and load assessment, quotation and after-sales requirements. Delivery, commissioning, operator familiarisation, planned maintenance, parts and technical support should be stated clearly in the quotation rather than assumed to be included.
Safety and Operating Suitability
Only trained and authorised operators should use the forklift. The machine must be operated within the capacity stated on its data plate and according to the operator manual, approved attachment instructions, site traffic plan and applicable safety requirements. Capacity can reduce substantially as lift height, load centre and attachment offset increase.
Before operation, inspect the forklift, load and travel route. Confirm that floors, yards, ramps, loading areas, docks and transport decks can support the combined machine and load mass. Secure and stabilise the load, maintain visibility, use installed restraints and operator-protection systems correctly and keep personnel clear of the operating zone. Diesel exhaust must be managed through suitable ventilation and site controls.
Frequently Asked Questions
The available capacity depends on the selected range and model. Delta can help narrow the right option based on the actual load, lifting height and site conditions.
Ready to discuss your heavy-duty forklift requirements?
Request a quotation based on your load, lift height, site conditions and required configuration.
