Feature
Three rated capacities
2WD or 4WD availability
Rough-terrain forklift design
Mitsubishi diesel engines
Maximum lifting height up to 4,800 mm
Model-specific turning radius

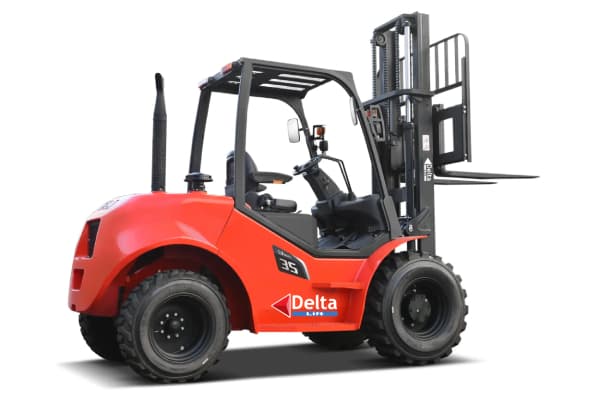

DeltaLift 3-5 Ton Rough Terrain Forklift
Reliable diesel-powered material handling across multiple load-capacity options.
Diesel 500-600 mm
Choose the model that matches your load, available operating space and application. The range includes compact units through to heavier-capacity options depending on site needs.
3,000-5,000 kg
LOAD CAPACITY
500-600 mm
LOAD CENTRE
4,800 mm
LIFT HEIGHT
Availability and configuration are confirmed during quotation. Model selection should be based on the actual load, load centre, aisle or yard space, lifting height and duty cycle.
Product Overview
The DeltaLift 3-5 Ton Rough Terrain Forklift range is designed for material handling in outdoor and uneven-ground applications where a conventional warehouse forklift may not be suitable. Three models cover rated capacities of 3,000 kg, 3,500 kg and 5,000 kg, giving operations a choice between mid-capacity and heavier-duty handling requirements.

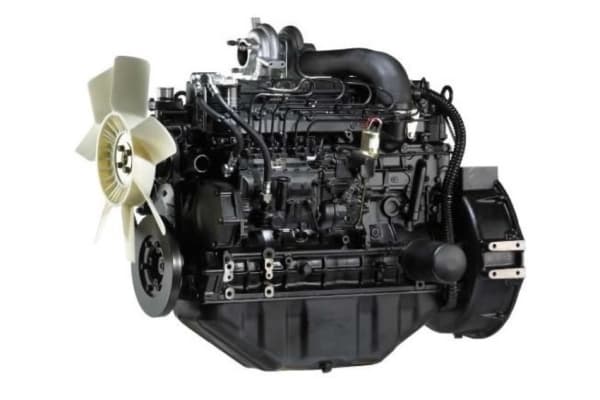

The CPCD30 and CPCD35 use the Mitsubishi S4S engine and are rated at 3,000 kg and 3,500 kg respectively, both at a 500 mm load centre. The CPCD50 is rated at 5,000 kg at a 600 mm load centre and uses the Mitsubishi S6S engine. The catalogue lists a maximum lifting height of 4,800 mm across all three models.
The range is available in either 2WD or 4WD. The most suitable drive configuration depends on the site surface, traction requirements, gradients, travel distances and weather exposure. Delta Heavy Equipment can assess these factors together with the load and lift requirements before preparing a quotation.
Why it matters
Provides 3,000 kg, 3,500 kg and 5,000 kg options.
Allows traction configuration to be matched to the site.
Intended for demanding outdoor material-handling environments.
The range uses listed Mitsubishi S4S and S6S engines.
Provides mast options for elevated load placement.
Turning requirements are stated for each listed model.
Practical outcome
Allows the forklift to be selected around the actual load requirement.
A better fit for different surfaces, gradients and outdoor operating conditions.
Supports movement over suitable uneven or compacted surfaces where a standard warehouse forklift may not be appropriate.
Provides clearly identified engine platforms for service and technical review.
Supports stacking and loading applications, subject to residual-capacity checks.
Helps assess whether the machine can manoeuvre within the available site space.
Configuration
Each quotation should identify the selected model and agreed configuration. The final scope should state the drive system, engine, mast and lift height, fork dimensions, tyres, attachment requirements, operator-protection equipment, lighting and any optional accessories included in the price.
Delta Heavy Equipment can assist with site and model selection, quotation and after-sales requirements. Delivery, commissioning, operator familiarisation, maintenance, parts and other services should be listed clearly in the quotation rather than assumed to be included.
Safety and Operating Suitability
Only trained and authorised operators should use the forklift. The machine must be operated within the rated capacity shown on its data plate and in accordance with the operator manual, site traffic plan and applicable safety requirements. Capacity can be affected by load centre, lift height, mast type and attachments.
Before operation, inspect the ground route and confirm that the surface can support the loaded machine. Avoid unsafe slopes, unstable edges, deep ruts, loose ground and side gradients outside the approved limits. Seat restraints and installed operator-protection systems must be used correctly. Never assume that 4WD makes an unsafe route acceptable.
Frequently Asked Questions
The available capacity depends on the selected range and model. Delta can help narrow the right option based on the actual load, lifting height and site conditions.
Ready to Discuss Your Rough Terrain Forklift Requirements?
Request a quotation based on your load, lift height, site conditions and preferred drive configuration.
